The accumulation tanks provide for accumulating already-prepared brines and maintaining them in optimum conditions of viscosity and temperature until the time of their utilization, thereby freeing the BRINMIX unit for new brine preparations. Available in six models with accumulation capacity of batches of 500, 1,000, 1,500, 2,000, 2,500 and 3,000 l. As an option, they can be equipped with a BRINSTIR agitator to reduce brine cooling time and to maintain the brine in suspension and avoid precipitations.
Combined with a BRINMIX, they allow for adapting complete brine preparation plants, making it possible to accumulate different types of brine in each tank for different applications.

Cylindrical accumulation tank with cover and support for optional BRINSTIR agitator and semi-spherical bottom.
Optional insulated cooling jacket with automatic temperature control connectable to the plant’s cooling circuit or to an optional cooling unit.
Optional System of automatic valves for brine distribution to the injector, additional accumulation tanks or any other point necessary in the production line.
Control of temperature, mixing times, graphic control of brine flow between tanks and to the injector, and integrated maintenance assistant, controlled from the optional BRINMIX touch screen.
Maximum easiness of cleaning and sanitation, with hygienic connections in all elements and optional CIP nozzles for cleaning the tanks.

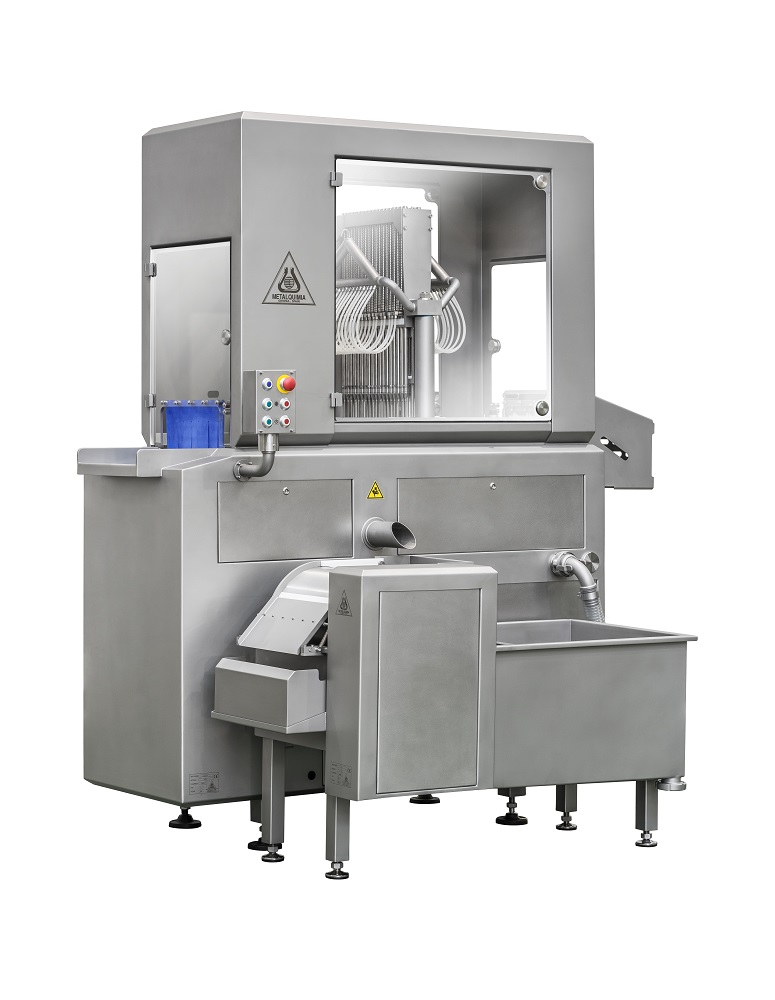

The MOVISTICK 30 PC is able to inject brine, spraying at constant pressure, into any kind of meat, bone-in or boneless (pork, beef, poultry, etc…)
Adjustable injection from 10 to 75 % per pass
Uniform distribution of brine without dead zones.
Injection of dispersed insoluble ingredients.
Minimal brine dripping.

• Fully self-piloted hydraulic operation, including brine pump.
• Adjustable walking beam conveyor feed.
• Independent retainer for each set of needles.
• Optional regulation device to control Spray Injection Pressure.
• Optional brine tank with 2 independent filtering systems (30 PC model).
• Optional automatic self-cleaning filter specially designed to work 24 hours non-stop with all types of brine.
• Total utilization of all brine.
• Maximum easiness of cleaning and maintenance.

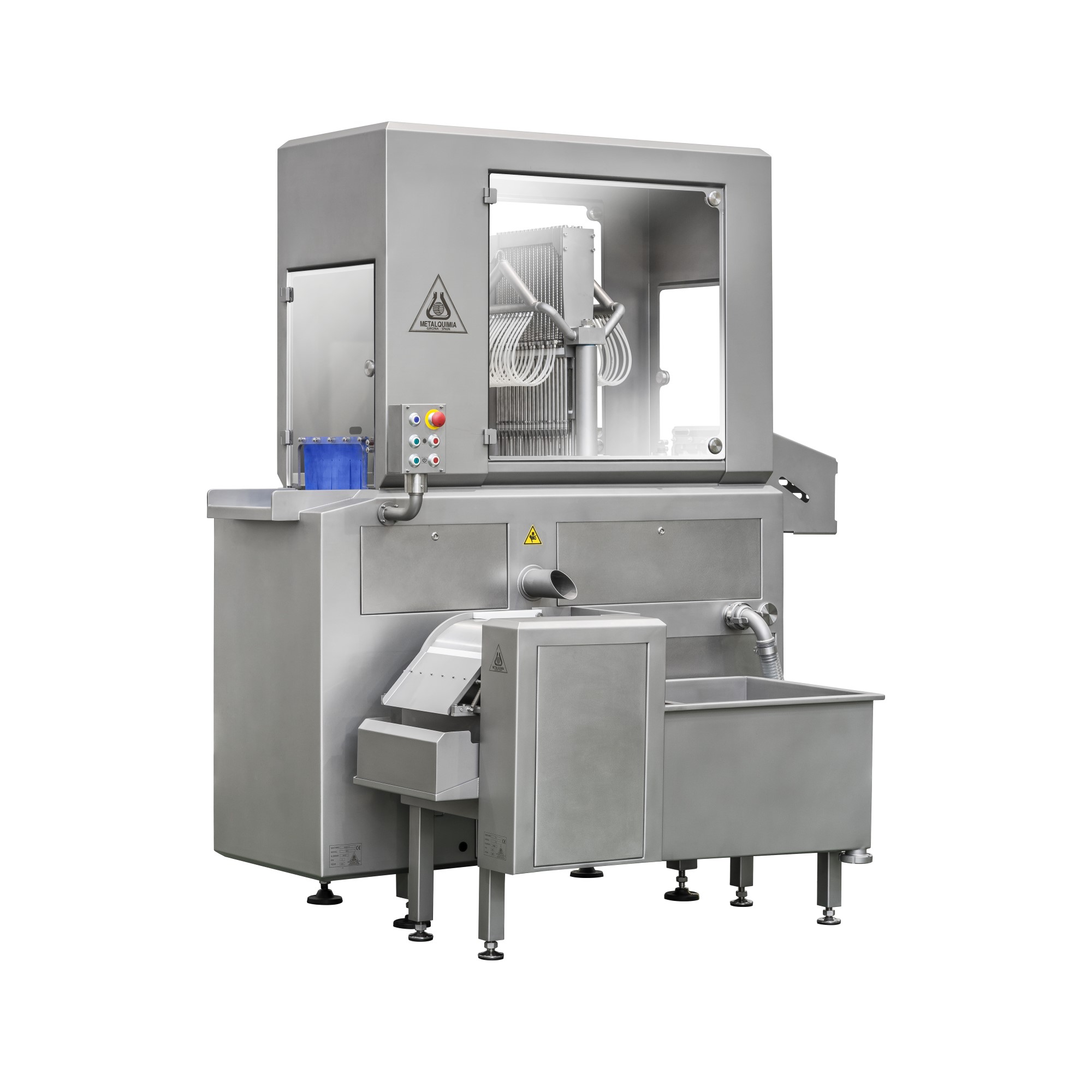

The MOVISTICK 60 PC is able to inject brine, spraying at constant pressure, into any kind of meat, bone-in or boneless (pork, beef, poultry, etc…)
Adjustable injection from 10 to 75 % per pass
Uniform distribution of brine without dead zones.
Injection of dispersed insoluble ingredients.
Minimal brine dripping.

• Fully self-piloted hydraulic operation, including brine pump.
• Adjustable walking beam conveyor feed.
• Independent retainer for each set of needles.
• Optional regulation device to control Spray Injection Pressure.
• Optional tenderizing head* assembled after the injection head and hydraulically synchronized (only available in 60 PC and 60 PC DUPLEX models).
• Optional automatic self-cleaning filter specially designed to work 24 hours non-stop with all types of brine.
• Total utilization of all brine.
• Maximum easiness of cleaning and maintenance.
